Why Flexible Circuits

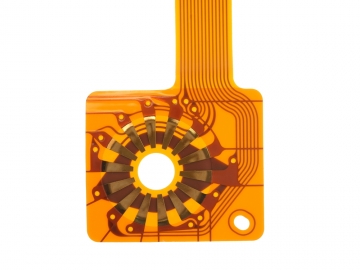

Benefits of
Flexible Circuits
Space savings up to 75%. Weight reduction up to 70%. Up to 500 million flex cycles. Eliminated wiring errors. The engineering case for flexible circuits.
The Engineering Case for Flex
Why Engineers Choose Flexible Circuits
Measurable performance advantages over rigid boards in every dimension that matters.
Design Freedom
Flex circuits bend, fold, twist, and roll to fit any geometry — enabling 3D packaging impossible with rigid boards. No longer restricted by bulky, rigid PC board space demands.
Space Savings — Up to 75%
Flex circuits conform to available space, achieving up to 75% space savings versus rigid board assemblies. Typical rigid board is 62 mils thick — flex is 4–11 mils.
Weight Reduction — Up to 70%
Raw materials in flex offer weight savings as high as 70% versus rigid boards. For aerospace, wearables, and portable devices where weight matters, this advantage is decisive.
500M+ Flex Cycles
KAPTON polyimide survives vibration and shock that destroys rigid boards. In dynamic applications, properly designed flex circuits withstand up to 500 million flex cycles without failure.
Thermal Performance
Larger surface-to-volume ratio enables increased heat dissipation. KAPTON’s exceptional thermal stability allows operation in extreme temperature environments.
Production Cost Savings
Less manual assembly labor. Elimination of routing, wrapping, and soldering costs. Complete interconnection systems installed as one unit. Automation reduces human error.
By the Numbers
Flex vs. Rigid — Quantified
| Metric | Rigid PCB | Flex Circuit | Flex Advantage |
|---|---|---|---|
| Thickness | ~62 mils | 4–11 mils | Up to 85% thinner |
| Weight | Baseline | Up to 70% lighter | Dramatic reduction |
| Space | Planar only | Up to 75% savings | 3D geometry enabled |
| Flex Cycles | ~1,000 | Up to 500 million | 500,000× more durable |
| Wiring Errors | Possible | Eliminated | Zero errors |
| Vibration | Moderate | Excellent (KAPTON) | Harsh env. rated |
| Connectors | Many | Minimal or none | Fewer failure modes |
| Assembly Labor | High | Low (integrated) | Reduced cost |
Ready to Start Your Project?
30+ years of flex circuit expertise. Quick turnarounds. ISO 9001 certified. ITAR registered.
