GCA Flex Products

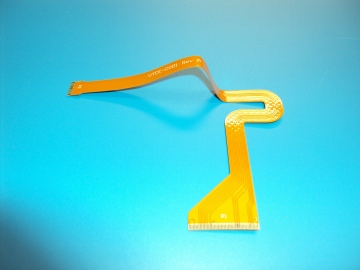

Flexible
Circuits
A complete range of flex circuit constructions — from simple single-layer designs to complex multilayer rigid-flex assemblies. All manufactured in-house in Carson, CA.
All Circuit Types
Flexible Circuit Constructions
All manufactured in-house at GCA Flex — Carson, CA. ISO 9001:2008. ITAR registered.
Type I — Most Common
Single-Sided Flex
One conductor layer on KAPTON polyimide. Most cost-effective. Up to 500 million flex cycles.
Type II / V — Mil-Spec
Double-Sided Flex
Two conductor layers with or without PTH. Crossover connections. Two-sided component placement.
3+ Layers
Multilayer Flex
Trace/space to .0015″. Microvia to .001″. Discontinuous lamination. Maximum density.
Hybrid Construction
Rigid-Flex
Rigid and flexible in one structure. Eliminates connectors. 3D packaging for aerospace and defense.
Specialty
Sculptured Flex
Variable conductor thickness. Built-in contacts eliminate additional connectors.
Back Bared
Double Access Flex
Single layer accessible from both sides. Specialty processing for unique interconnection.
Ready to Start Your Project?
30+ years manufacturing precision flexible circuits.
ISO 9001:2008 · ITAR Registered · Made in USA.
